TE 540 3D A8

Features

  • – For flush commercial doors with claddings up to 8 mm (0.315″)
  • – 180° opening angle without pinching or damage during opening and closing
  • – Engineered for doors clad in mirror or laminate with thickness up to8mm (.315 in.)
  • – For doors up to 220 lbs with 2 hinges installed
  • – EASILY adjustable in 3-Dimensions
  • – Maintenance-free slide bearings
  • – For wood, metal, or casing frame installation
  • – Fire Resistance, Smoke Resistance, Soundproof, Forced Entry Resistance
SKU: SIMONSWERK series TE 540 3D A8. Category: . Tag: .

TECTUS enables the optimal integration of flush doors in straight line and flush surfaces for contemporary clean designs.

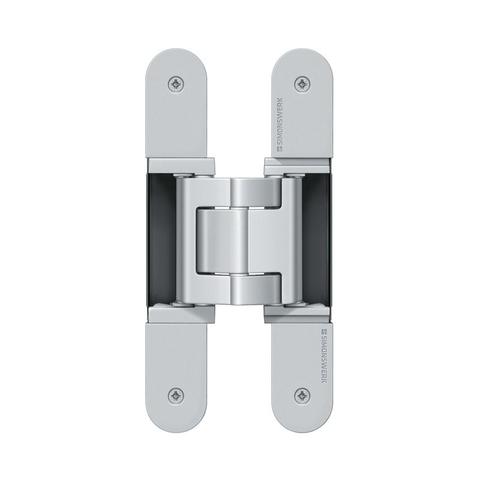

The SIMONSWERK TECTUS TE 540 3D A8 concealed hinge is completely hidden for flush doors with wood, steel or aluminum doors and frames.

The A8 allows a door to visually disappear into a wall with many different kinds of claddings such as mirrors, laminates, and marble up to 8 mm (0.315”) thick. This gives designers further options for integrating the door element into a holistic room concept.

The three-dimensional adjustability and maintenance-free slide bearing technology of the TE 540 3D A8 hinge system is for use with high-quality commercial doors.

Height

7.874″ [200mm]

Width

Frame & Leaf: 1.46″ [37mm]
