TE 640 3D A8 ENERGY

Features

  • For flush high performance commercial doors with claddings up to 8 mm (0.315″)
  • Energy hinges preserve all the technical and visual features of the TECTUS® hinge system
  • Easy to fit pluggable/unpluggable reverse-polarity-protected plug connection with integrated tension relief
  • 180° opening angle without pinching or damage during opening and closing
  • For doors up to 352 lbs with 2 hinges installed
  • EASILY adjustable in 3-Dimensions
  • Maintenance-free slide bearings
  • For wood, metal, or casing frame installation
  • Compatible with most designs for electric locks and fittings
SKU: SIMONSWERK series TE 640 3D A8 ENERGY. Category: . Tag: .

Today’s modern and efficient buildings often require the ability to control and operate doors remotely. This requires the transfer of electrical power and information from door frames to door panels.

The TECTUS Energy Series provides a sophisticated way to utilize this technology when card readers, access and door control systems, electrified locks, monitoring systems, and multimedia components are installed. The cable with its 16 wires is completely concealed behind the hinge arms to prevent unauthorized tampering.

TECTUS enables the optimal integration of flush doors in straight line and flush surfaces for contemporary clean designs.

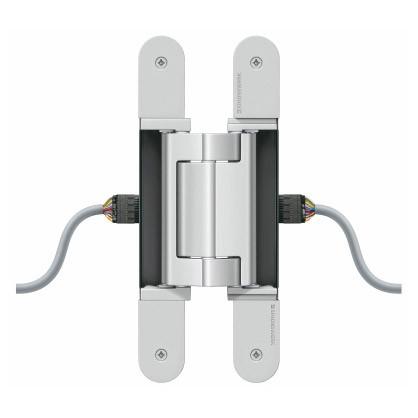

The SIMONSWERK TECTUS TE 640 3D A8 Energy concealed hinge is completely hidden for flush doors with wood, steel or aluminum doors and frames.

The three-dimensional adjustability and maintenance-free slide bearing technology of the TE 640 3D A8 Energy hinge system is for use with high-quality commercial doors.

Height

9.45" [240mm]

Width

1.46" [37mm]
